Photocell factory Anti Strong Light Interference Detection Distance Of 30 Meters

Place of Origin	China
Merknaam	JUTAI
Certificering	CE
Model Number	IR-20
Minimum Order Quantity	1
Prijs	negotiable
Packaging Details	Cartoon
Delivery Time	5 - 8 working days
Payment Terms	T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability	1000 pieces per month

Contacteer me voor vrije steekproeven en coupons.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

Productdetails

IP Rating	IP65	HS Code	8531901000
Package Size	12.00cm * 11.70cm * 4.30cm	Package Gross Weight	0.150kg
Detection Type	Photon Detector	Type	Wired
Markeren	wired photocell sensor with 30m detection , anti strong light interference photocell , photocell sensor for outdoor detection

Laat een bericht achter

Productomschrijving

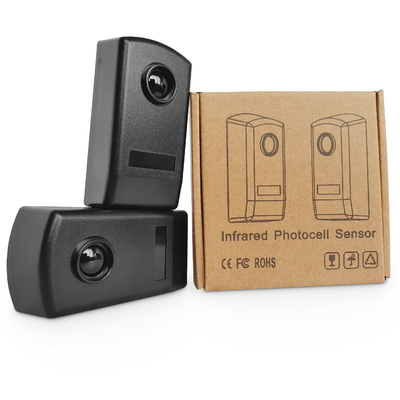

JUTAI IR-20M Infrared Photocell - Reliable 20M Security Sensing Solution

Photocell factory Anti Strong Light Interference Detection Distance Of 30 Meters 0

Product Description

The JUTAI IR-20M is a high-performance infrared photocell designed as a trusted security partner for both indoor and outdoor applications. It operates by emitting and detecting an infrared ray, with the receiver triggering a response (via relay) whenever the ray is interrupted—making it ideal for enhancing safety in access control, gate systems, and perimeter security setups.

Featuring a robust build with an IP55 protection rating, the IR-20M withstands various environmental conditions, ensuring reliable performance in temperatures ranging from -10°C to +60°C. Its flexible power supply (12/24V AC/DC) and easy installation process (suitable for walls or metal surfaces) make it a versatile choice for diverse security scenarios.

Technical Parameters

Parameter	Specification
Power Supply	12/24V AC/DC
Max Range	20 Meters (indoor or outdoor)
Operating Temperature	-10°C to +60°C
Max TX Working Current	≤25 mA
Max RX Working Current	≤35 mA
Max Relay Contact	Max 500 mA @ 48V AC/DC
IP Rating	IP55

Key Notes

Port Lines: 4=Common, 5=N.C. (LED off), 6=N.O. (LED off)
Installation: Mount on walls (using screw anchors) or metal surfaces (self-tapping screws). Ensure proper alignment for optimal ray detection—red LED on the receiver stays off when aligned, turning on when the ray is interrupted.
Connection: Power with 12-24V AC/DC; follow wiring diagrams for TX (transmitter) and RX (receiver) connections.

Trusted by professionals, the JUTAI IR-20M delivers consistent performance to safeguard your spaces.

Photocell factory Anti Strong Light Interference Detection Distance Of 30 Meters 1

Technical parameter

Feature	Specification
Power Supply	12-24VAC/VDC
Max. Range	20 Meters
Operating Temperature	-10 to +60°C
Max. TX Working Current	25mA
Max. RX Working Current	35mA
Max. Relay Contact	500mA at 48VAC/VDC
IP Rating	IP65 with rubber
