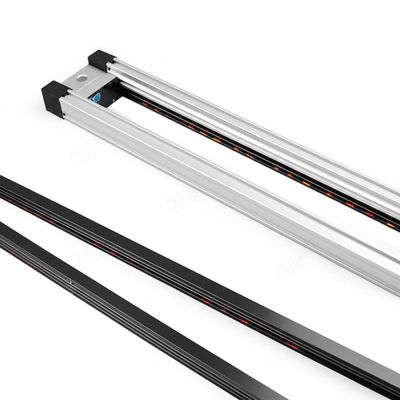

Safety Light Curtain Sensor -25℃~75℃ for Rolling Industrial Doors Elevator Entrances

  • Safety Light Curtain Sensor -25℃~75℃ for Rolling Industrial Doors Elevator Entrances
  • Safety Light Curtain Sensor -25℃~75℃ for Rolling Industrial Doors Elevator Entrances
Plaats van herkomst CHINA
Merknaam JUTAI
Certificering CE
Modelnummer CL20-8L
Min. bestelaantal 1
Prijs negotiable
Verpakking Details cartoon
Levertijd 5 - 8 werkdagen
Betalingscondities T/T, L/C, D/A, D/P, Western Union, PayPal ,, MoneyGram, Alipay
Levering vermogen 1000 stuks per maand

Contacteer me voor vrije steekproeven en coupons.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
IP -beoordeling IP67 Functie Blanking
Detectieafstand 8m Materiaal Aluminiumlegering
Functie Corrosiebestendig Vermogensspanning DC12-24V
Bedrijfstemperatuur -20 ~ 60 ℃ Bedrijfsstroom <50ma>
Uitvoer No/Nc, COM Werkstroom < 20 mA@DC12V
Specificatie 2000*21*15 mm
Markeren

Safety light curtain for industrial doors

,

IP67 light curtain sensor

,

Light curtain for elevator entrances
Laat een bericht achter
Productomschrijving




Product Description



Safety Light Curtain Sensor -25℃~75℃ for Rolling Industrial Doors Elevator Entrances 0



Shenzhen JUTAI IP67 Waterproof Safety Light Curtain Sensor: The Ultimate Safety Guardian for Industrial Operations

Shenzhen JUTAI Communication Co., Ltd. proudly presents its IP67 Waterproof Safety Light Curtain Sensor—a rugged, high-performance safety device engineered to perform exceptionally in demanding industrial environments where dust, moisture, and extreme temperatures are everyday challenges. Equipped with top-grade IP67 waterproof and dustproof certification, this sensor ensures non-stop reliability across a wide range of scenarios: from busy manufacturing facilities and high-volume warehouses to sub-zero cold storage units and fast-paced automated production lines. It has become an irreplaceable safeguard for modern industrial safety management systems.

10 Tailored Models to Meet Diverse Industrial Requirements

To address the varied safety needs of different industrial sites, we have developed 10 unique models, each with adjustable beam counts and lengths to perfectly match specific application demands. Below is a detailed overview of the key specifications for each model:
Model Length Beam Quantity Detection Range
CL05 - 4L 500mm 4 beams Up to 8 meters*
CL05 - 8L 500mm 8 beams Up to 8 meters*
CL10 - 8L 1000mm 8 beams Up to 8 meters*
CL10 - 16L 1000mm 16 beams Up to 8 meters*
CL15 - 8L 1500mm 8 beams Up to 8 meters*
CL15 - 16L 1500mm 16 beams Up to 8 meters*
CL20 - 8L 2000mm 8 beams Up to 8 meters*
CL20 - 16L 2000mm 16 beams Up to 8 meters*
CL25 - 8L 2500mm 8 beams Up to 8 meters*
CL25 - 16L 2500mm 16 beams Up to 8 meters*
Note: The actual detection range may be impacted by environmental factors (such as dust and humidity) and the number of beams.

Key Advantages That Make It Stand Out in the Market

IP67 Protection & Durable Heavy-Duty Build

This sensor is enclosed in a fully sealed, high-strength aluminum alloy casing, which effectively repels water jets and prevents dust intrusion—making it ideal for wet or dusty environments like food processing plants. It maintains stable performance even in extreme temperature ranges, from as low as -25°C (perfect for cold storage applications) to as high as +75°C, and can adapt to both indoor and outdoor harsh conditions.

Dual Operational Modes for Maximum Versatility

  • Blanking Mode: Specifically designed for door gap installations. During the door-closing process, it monitors each beam independently; if an obstacle blocks any beam, the door reverses instantly to prevent damage or injury.
  • Normal Mode: When mounted on the sides of the door, any interruption to the light beams triggers an immediate door-opening signal, ensuring maximum safety for workers and equipment.

High-Precision Detection & Ultra-Fast Response

With a 100mm beam spacing, this sensor can accurately detect small obstacles, significantly reducing the risk of accidents in busy industrial areas. Its ultra-fast response time (≤20ms) allows it to keep up with high-speed workflows, a critical feature for automated production lines and fast-moving machinery.

Energy Efficiency & Flexible Customization

With a power consumption of only ≤4W, this sensor helps businesses cut down on long-term operational costs. Additionally, you can select between 4 and 16 beams to match the exact detection area needs of your industrial setup, avoiding unnecessary resource waste.

Comprehensive Technical Specifications

Parameter Details
Product Type Safety Light Curtain Sensor
Waterproof & Dustproof Rating IP67 (fully dustproof and waterproof; suitable for moist and harsh environments)
Working Voltage 24V DC ± 10%
Power Consumption ≤ 4W
Response Time ≤ 20 ms
Beam Count (e.g., CL10-8L) 8 beams
Detection Range Up to 8 meters (influenced by environmental conditions and beam quantity)
Beam Spacing 100mm
Operating Temperature -25°C to +75°C
Relative Humidity 95% (non-condensing)
Housing Material High-impact aluminum alloy
Output Type NPN or PNP (optional, based on customer requirements)
Detection Principle Light-based (triggers a response when an obstacle blocks the light beams)
Mounting Adjustable bracket (easy to install and align for precise positioning)
Safety Certification CE Certified (Certificate No.: CTC142H1007801SC)

Key Applications & Practical Benefits for Industrial Use

Industrial Door Safety Applications

  • Rolling Doors: Widely used in warehouses and factories for quick access. It detects obstructions during the door-closing process and reopens the door to avoid collisions with goods or workers.
  • Sectional Doors: Protects vertically opening doors (used for heavy machinery entry) by detecting people or objects in the door’s path, preventing crushing hazards.
  • High-Speed Doors: Ideal for cold storage facilities, pharmaceutical plants, and food processing factories. If the light beams are blocked while the door is closing, it stops and reopens the door, maintaining temperature control and ensuring safety.
  • Foldable Doors: Prevents injuries caused by fast-moving foldable doors in high-traffic, space-constrained areas (such as narrow factory corridors).
  • Automatic Sliding Doors: Detects obstacles or people in the door’s path and halts the door’s movement, avoiding collisions in industrial or commercial spaces.
  • Fire Doors: Ensures safe and unobstructed closing of fire doors in industrial sites by detecting barriers, protecting both personnel and vehicles during emergencies.
  • Cold Storage Doors: Operates reliably at -25°C, unaffected by moisture, condensation, or fog—playing a vital role in maintaining cold chain integrity and safety.

Other Industrial Safety Scenarios

  • Material Handling (Conveyors): Prevents collisions between workers, machinery, and moving conveyor parts, reducing workplace accidents.
  • Robotic Arms: Immediately stops fast-moving robotic arms when a person or object crosses the light beam, protecting workers from harm.
  • Automated Guided Vehicles (AGVs): Enables safe navigation of AGVs in dynamic warehouses and factories, avoiding obstacles and pedestrians.
  • Packaging Equipment: Stops high-speed packaging machines when obstructions are detected, protecting operators and preventing equipment damage.

Why Partner with Shenzhen JUTAI Comm Co., Ltd.?

  • Over 10 Years of Industrial Sensor Expertise: As a leading company in the sensor industry, we specialize in developing robust, efficient, and cost-effective safety solutions tailored to industrial needs.
  • Customized Support Services: We provide free on-site evaluations to assess your unique safety requirements and offer custom product solutions for specific scenarios.
  • 24/7 Dedicated Customer Service: Our professional team is available around the clock to resolve technical issues, provide installation guidance, and address your inquiries promptly.

Contact Us Today for Industrial Safety Solutions

Safeguard your industrial operations with Shenzhen JUTAI’s IP67 Waterproof Safety Light Curtain Sensor—your trusted partner for long-term safety and operational efficiency.
